Aviom 6416o Output Module Pro 64 Series


Are you looking for Aviom 6416o Output Module Pro 64 Series with low price? We have already found the Aviom 6416o Output Module Pro 64 Series deals for you. We have evaluated the price with multiple online store and confirm affordable price from Amazon. Check the prices to update and more satisfying for the product reviews!

Aviom 6416o Output Module Pro 64 Series

Product By : Fender

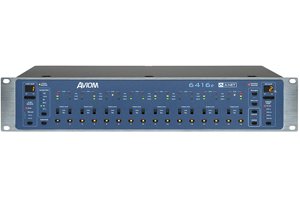

Aviom 6416o Output Module Pro 64 Series . The 6416o Output Module provides 16 balanced mic- or line-level analog outputs from a Pro64 A-Net network. Each channel includes a two-position output level switch (mic or line) and three-segment level metering. Alternate audio outputs are provided via DB25 multipin connectors on the rear panel.

Each 6416o can be configured to operate within a specified channel/slot range within the Pro64 network, making complex installations easy to configure and manage. Each output channel of a 6416o can be made active as needed.

Specs:

Channels: 16 outputs Mic or line level
XLR Outputs: Pin 1: Shield; Pin 2: Hot; Pin 3: Cold
Impedance balanced; Signal on hot only
Alternate Audio Outputs: DB25 multipin; audio pinout
Output Impedance: 91 Ohms
Output Levels: +4dBu, -17dBu 2-position switch
Sample Rates: 1x: 39.7-52kHz;
2x: 79.4-104kHz;
4x: 158.8-208kHz 24-bit resolution
Frequency Response: -3dB: 2Hz and 23kHz
±0.5dB: 3Hz-22kHz (at 1x sample rate)
THD+N: < .002% at -10dBFS
Signal to Noise: D/A: -111dB (unweighted)
Crosstalk: <100dB at 1kHz
Maximum Ambient Temperature: 50°c
Virtual Data Cables: MIDI In, MIDI Out
5-pin DIN
RS-232
DB9 connector; DIP switch configuration
GPIO
In (x4), Out (x4); terminal block connectors;
DIP switch configuration; TTL or isolated
A-Net: 2 EtherCon® RJ45 connectors
A-Net Cable Length: 400 feet (120 meters) between devices
Latency: Analog input to analog output: <800µs
Power Supply: 100-240VAC 50-60Hz, 24W
Internal switching type; IEC connector
Dimensions: 2U: 19"w x 8"d x 3.5"h (482.6 x 203 x 88 mm)

Features
  • 16 balanced mic- or line-level analog outputs (XLR)
  • DB25 alternate audio outputs
  • Virtual Data Cable connectivity for GPIO, MIDI, and RS-232
  • Variable sample rates: 44.1kHz± to 192kHz±
  • 24-bit D/A converters, Internal universal power supply; IEC power connector
